Nuestra batería de litio: adaptada a múltiples dispositivos, conveniencia sin límites.

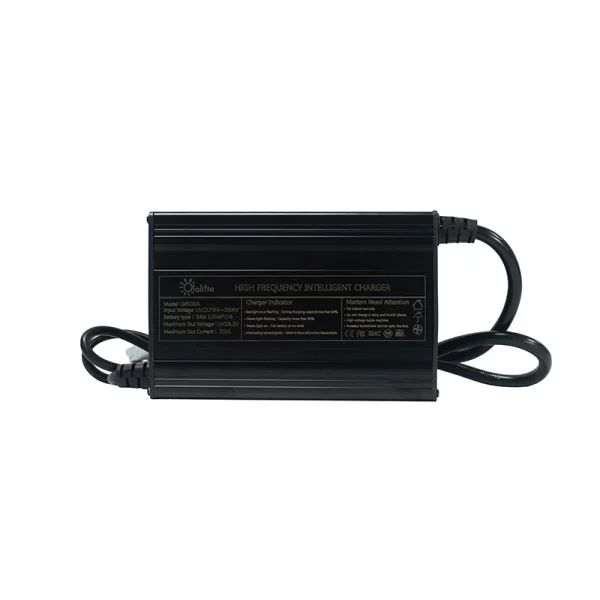

OLA-24-20-Charger-1

OLA-24-20-Charger

SKU: OLA-24-20-C

– 3 años de garantía
Scope
This approval is applicable to CYCH series chargers of lithium battery models.
lnput Characteristics
Input Voltage
Nominal Voltage:200~240Vac
VariationRange:176~264Vac
Input Frequency
Nominal Frequency:50/60Hz
VariationFrequency:47~63Hz
Input Current
10Arms max at any input voltage and rated, DC output rated load.
Inrush Current
30Amps Max. Cold start at 240V ac input, with rated load and 25Cambient.
Ac Leakage Current
0.25mA Max at 240V ac input.

SKU: OLA-24-20-C Categoría:
Item Min Nominal Max Remark
Output voltage 16.0VDC 29.2VDC Software continuously adjustable output range.
Output Current 0.5A 20A During the constant current charging stage, the charging current must not be less than 10.0A
Efficiency 91.5% 50%~100% Load, rated input voltage
Voltage ripple ±1%
±2%		 Ripple effectivevalue coefficient:≤±1%,
Ripple peak coefficient:≤±2%
Output voltage Error ±1% Under normal temperature and constant voltage
conditions, the output voltage setting error within
the specified range does not exceed ±1%.
Efficiency +5%
-10%		 Under the constant current state at room
temperature of 25 degrees, the output current
setting error does not exceed +5%~-10%.

OLA-24-20-C
